1. Summary

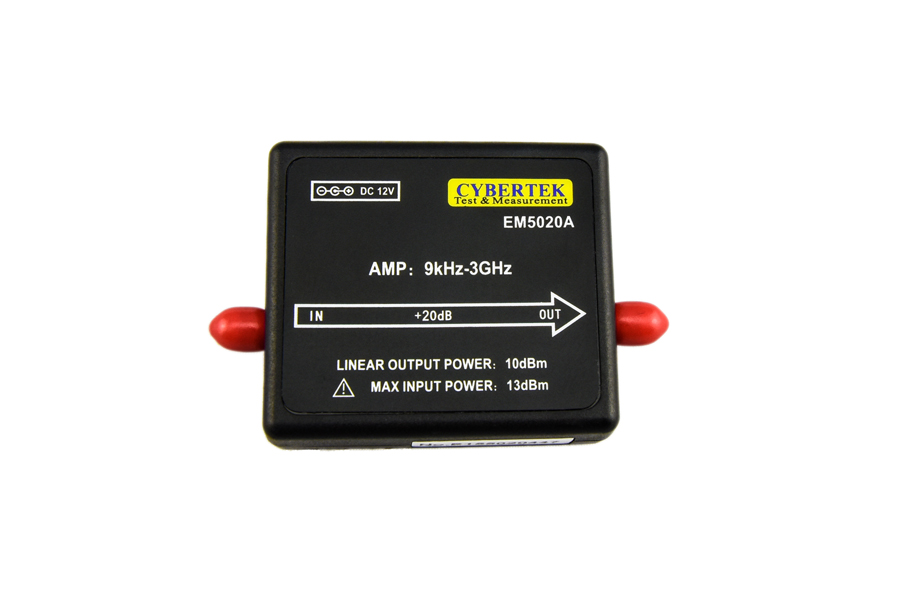

EM5020A/B pre-amplifier can be used with EM5030 near field probe to amplify the small signal from probe. The frequency range of EM5020A/B is 9kHz - 3GHz with a fixed gain of 20dB (EM5020A) / 30dB (EM5020B). It can greatly improve the sensitivity of system testing. The EM5020A/B can be powered by a standard USB power adapter (Standard Accessories) which is very easy to obtained, and it also can be very conveniently powered by the USB port of the spectrum analyzer or receiver. It can help the engineer to debug the electromagnetic disturbance source quickly and accurately with the EM5030 of CYBERTEK.
Specification
Model | EM5020A | EM5020B |
Frequency range | 9kHz - 3GHz | |
Gain (typically) | 20dB | 30dB |
Flatness | ±3dB | |
Gain | ( Figure1 ) | ( Figure2 ) |
Max linear output power | 10dBm | |
Noise figure@2GHz | 3dB | 4dB |
Max input power | 13dBm | 15dBm |
Supply voltage | DC12V | |
Input/output interface | SMA female | |
Size | 72mm*52mm*18 mm | |
