1. Features and Applications

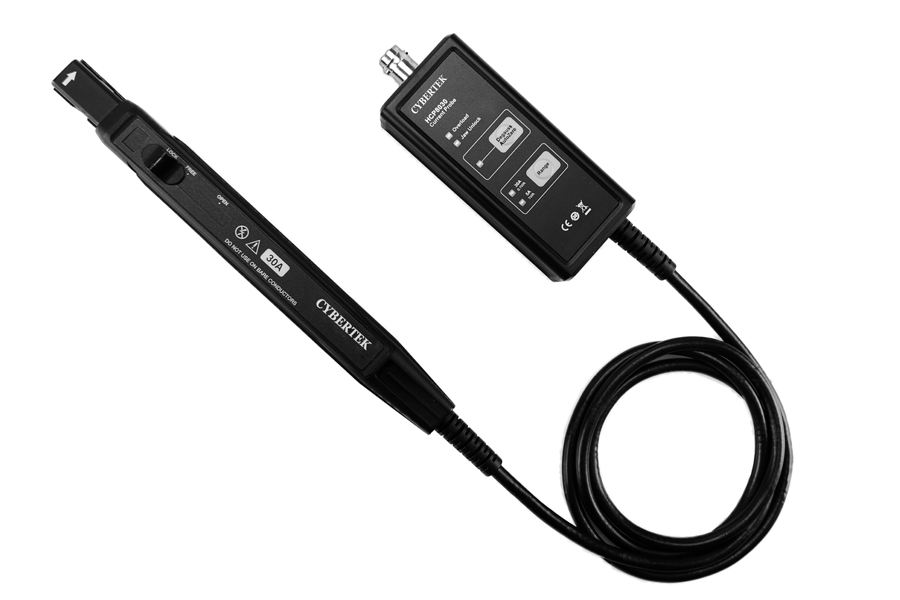

The HCPX8000 series current probes are high frequency DC/AC active current probes featuring high bandwidth and high accuracy. Operating with our OT7001 smart probe adaptor, HCPX8000 can communicate with most mainstream brand oscilloscopes on the market and set up attenuation ratio, impedance and delay time automatically. This system freed the users from the trouble of setting parameter manually with the third-party probe and achieve the same user experience as those specialized probe. If the users have no need for smart control function, they can also just power this probe with regular adaptor during measurement.
Specification
Electrical characteristics
Small Pliers
Model | HCPX8030(C/D/H) | HCPX8050 | HCPX8070 | |||
Bandwidth (-3dB) | HCPX8030 | DC-50MHz(Figure1.a) | DC-50MHz (Figure4) | DC-30MHz (Figure7) | ||
HCPX8030C | DC-70MHz(Figure1.b) | |||||
HCPX8030D | DC-100MHz(Figure1.c) | |||||
HCPX8030H | DC-120MHz(Figure1.d) | |||||
Rise time | HCPX8030 | ≤7ns | ≤7ns | ≤11.6ns | ||
HCPX8030C | ≤5ns | |||||
HCPX8030D | ≤3.5ns | |||||
HCPX8030H | ≤2.92ns | |||||
Continuous maximum input range | HCPX8030 | 30Arms（Figure2.a） | 50Arms (Figure5) | 70Arms (Figure8) | ||
HCPX8030C | 30Arms（Figure2.b） | |||||
HCPX8030D | 30Arms（Figure2.c） | |||||
HCPX8030H | 30Arms（Figure2.d） | |||||
Max peak current value | 50Apk | 75Apk | 100Apk | |||
Range | 5A | 1X | 7.5A | 1X | 10A | 2X |
30A | 10X | 50A | 10X | 70A | 20X | |
Overload | 5A | ≥5APk | 7.5A | ≥7.5APk | 10A | ≥10APk |
30A | ≥50APk | 50A | ≥75APk | 70A | ≥100APk | |
Current transfer ratio | 5A | 1V/A | 7.5A | 1V/A | 10A | 0.5V/A |
30A | 0.1V/A | 50A | 0.1V/A | 70A | 0.05V/A | |
measurable current | 5A | 1mA | 7.5A | 1mA | 10A | 2mA |
30A | 10mA | 50A | 10mA | 70A | 20mA | |
Amplitude accuracy (DC,45-66Hz ) | 5A | ±1%±1mA | 7.5A | ±1%±1mA | 10A | ±1%±2mA |
30A | ±1%±10mA | 50A | ±1%±10mA | 70A | ±1%±20mA | |
Input impedance | HCPX8030 | Reference Figure（3.a） | Reference (Figure6) | Reference (Figure9) | ||
HCPX8030C | Reference Figure（3.b） | |||||
HCPX8030D | Reference Figure（3.c） | |||||
HCPX8030H | Reference Figure（3.d） | |||||
Terminal load | ≥100kΩ | |||||
Power supply | DC 5V/2A（Standard Adaptor） | |||||
Voltage of insulated wire | 300V CAT I * | |||||
Safety compliance | EN61010-1: 2010+A1:2019 EN 61010-2-032:2019 | |||||
EMC standard | EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013 | |||||
