1. Introduction

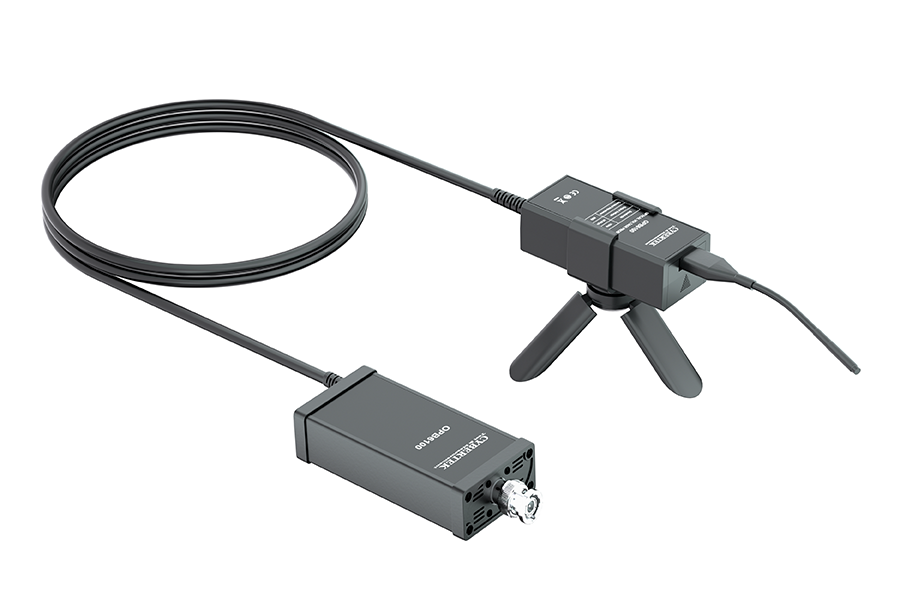

OPB6000 series is the latest optical isolated voltage probe with remarkably high CMRR. The CMRR of traditional differential probe decreases fast in high-frequency range, as a result, measuring the small voltage signal waveform (e.g., the driving voltage when measuring the upper MOSFET of the half-bridge circuit) under high CM interference voltage accurately become a extremely hard task. OPB6000 series applies optical isolation technologies and gains remarkably high CMRR in all working bandwidth, helping our customers to deal with these kinds of challenging measurement with low cost.
1. Electric Specification
Model | OPB6015 | OPB6035 | OPB6050 | OPB6080 | OPB6100 | |
Bandwidth (-3dB) | 150MHz | 350MHz | 500MHz | 800MHz | 1GHz | |
Rise time | ≤ 2.3ns | ≤ 1.0ns | ≤ 0.7ns | ≤ 0.43ns | ≤ 0.35ns | |
Terminal load | 1MΩ | 1MΩ | 50Ω | 50Ω | 50Ω | |
Output voltage range | ±1.25V | ±1.25V | ±0.5V | ±0.5V | ±0.5V | |
Typical values of host noise (Vrms) | 2mV | 2mV | 1mV | 1mV | 1mV | |
DC accuracy | ≤±1% | |||||
Isolation voltage (DC+Peak AC) | ±60kV | |||||
Standard configuration attenuator + host delay | 15.3 ns (2-meter optical fiber) | |||||
Battery specifications | Capacity | 7.4V/950mA | ||||
Operating Time | About 8h | |||||
Standby time | About 30 days | |||||
Power supply method | Rear end: USB 5V/2A | |||||
Auto calibration | Yes | |||||
