1. Summary

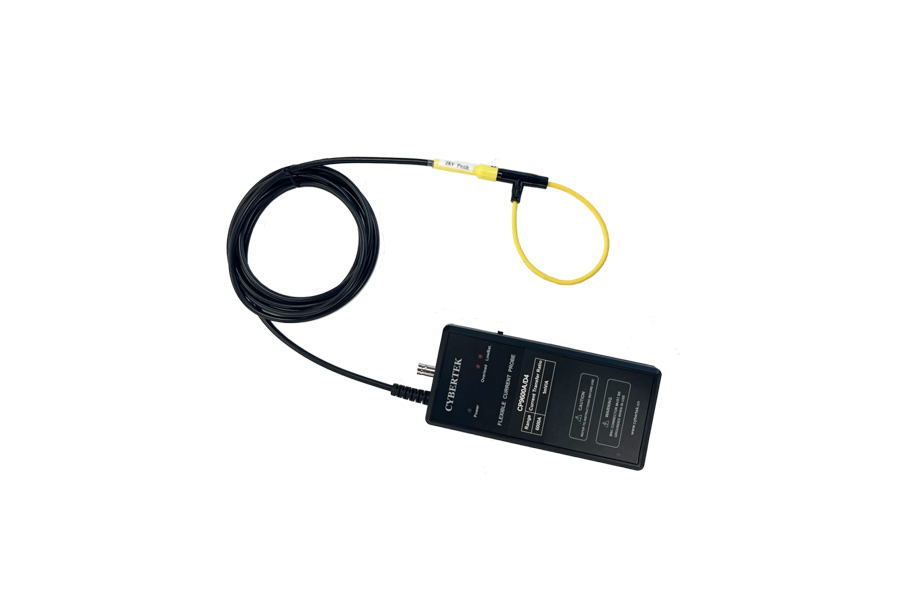

CP9000(S/L)A series AC flexible current probe is designed specifically for the AC current signal measurement with high bandwidth and high precision (Typical value 2%). CP9000A series can achieve wide current measurement range, with frequency ranging from a few Hz to tens of MHz, current ranging from mA level to several KA level, and conquered many difficulties of current measurement.
CP9000A Series: Has a typical coil outer diameter of 3.5mm or 4.5mm and withstanding voltage of up to 2kVpk or 5kVpk correspondingly, its coil can reach any circuit in narrow space and measure large current conveniently.

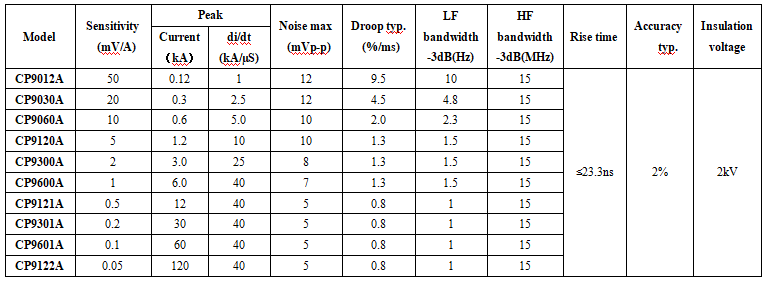

Electrical Specifications
Measuring conditions：23℃；60%RH；Conductor is central in the coil.
CP9000A Series
